Part 9: SYNTHESIS

Answers to the synthesis problems are given below.  These answers have been selected as they are short and efficient, but there are probably other reasonable solutions.  Note some targets have specific stereochemistry that needs to be considered.

When planning syntheses, one should try to work backwards by functional group analysis. The diagrams show the "retrosynthesis" - the design or plan and then below that the reaction scheme step-by-step (as required in the question). Red arrows try to show carbon-carbon bond forming reactions, blue arrows are functional group manipulations. The blue text rationalise the retrosynthetic analysis and information about important reactions are given in green.

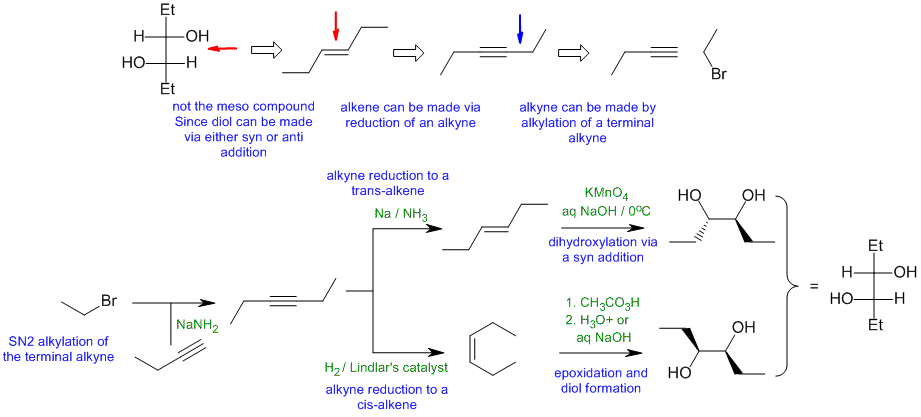

A1

diol synthesis

Common errors:
dealing with the required stereochemistry, incorrect reagents for forming the diol

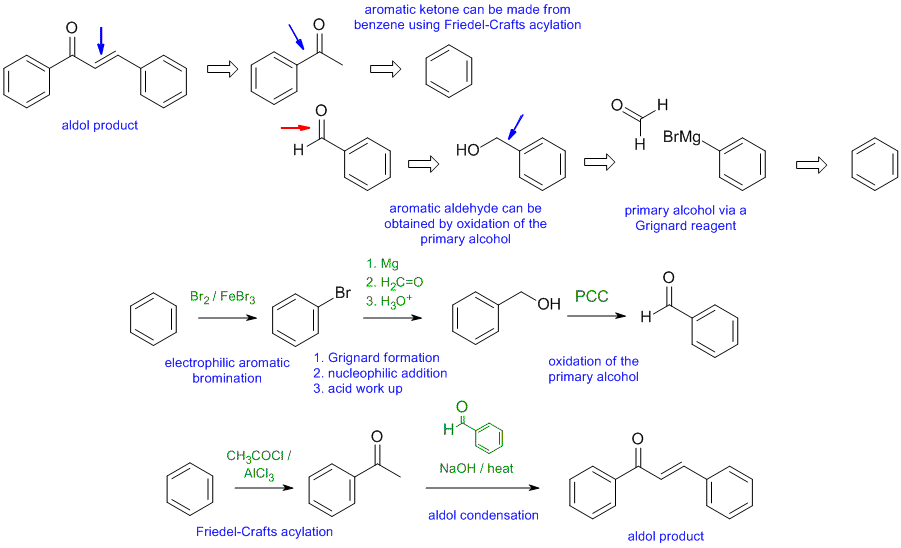

A2

aldol condensation

Common errors:
trying to make the aldehyde directly via Friedel-Crafts acylation, wrong starting materials for the aldol, not spotting the aldol

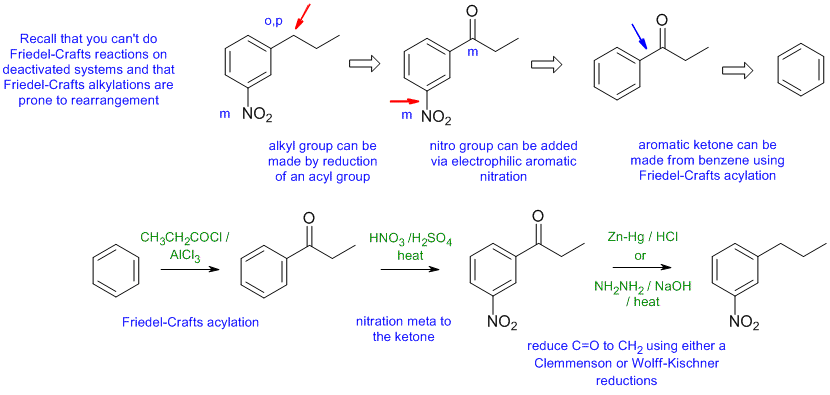

B1

m-nitroalkylbenzene synthesis

Common errors:
trying to do Friedel-Crafts on a deactivated system, overlooking rearrangement in Friedel-Crafts alkylation, regiochemistry

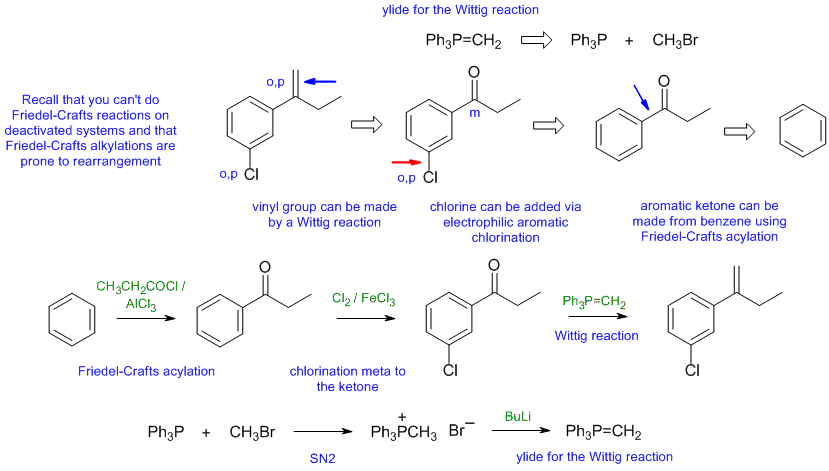

B2

m-Cl alkenylbenzene

Common errors:
trying to do Friedel-Crafts on a deactivated system, regiochemistry

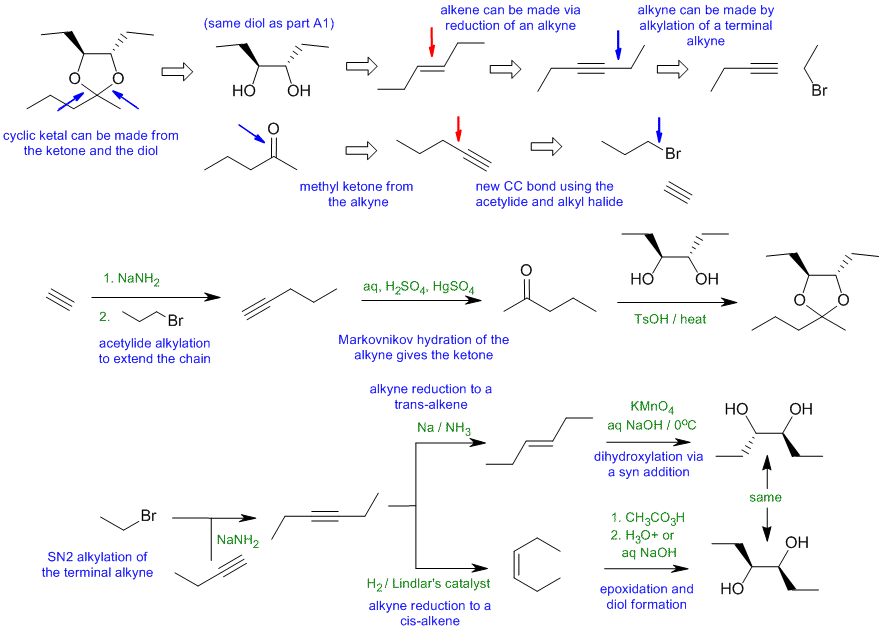

C1

cyclic ketal synthesis

Common errors:
poor selectivity in the synthesis of the ketone, incorrect diol stereochemistry

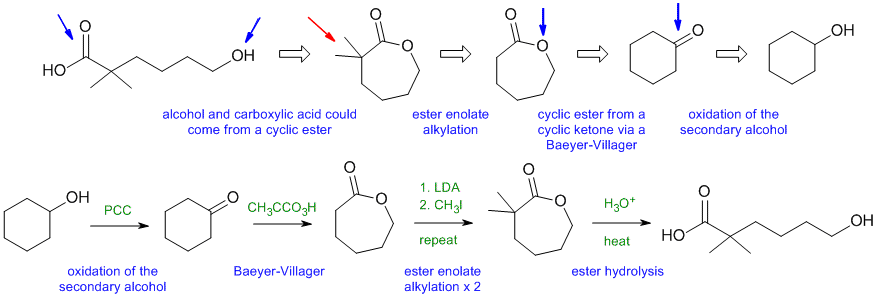

C2

alkylated acid-alcohol


General comments.... Some students started from hydrocarbons with 3 C or less and then made errors in making the materials they could have just used as starting materials.

Common errors included:

(1) incorrect counting of C atoms
(2) trying Freidel-Crafts reactions on deactivated systems or with vinyl halides or aryl halides or ignoring rearrangements in alkylations
(3) trying to use Friedel-Crafts to make benzaldehyde (it can only be used to give aromatic ketones)
(4) trying to do Grignard reactions in the presence of acidic H atoms (e.g. -OH / -NH or CO2H groups)
(5) trying to use Grignard reactions of RMgX with another R-X in an attempt to make R-R systems (these tend to fail due to elimination or Mg exchange).
(6) trying to make Grignard reagents from R-H rather than R-X (X = Cl, Br or I)
(7) poor management / control / incorrect regio and/or stereochemistry
(8) pKa issues....i.e. using strong nucleophiles (i.e. strong bases) in the presence of acidic groups.
