| Qu1: |  |
| (a)
   |   Chlorine atoms can be introduced fairly simply by treating benzene

  with chlorine in the presence of a Lewis acid catalyst like iron (III)

  chloride.
   |

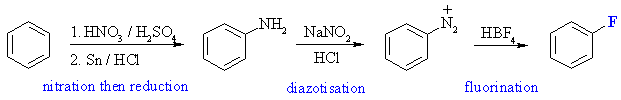

| (b)


 |
 The most common method for introducing fluorine is via the Schiemann

    reaction of the diazonium salt using HBF4. Diazonium salts are

    obtained from anilines.
 |

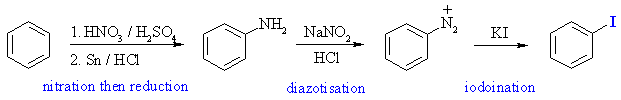

| (c)


   |
 The most common method for introducing iodine is again via the diazonium

    salt , by treating it with potassium iodide.
   |

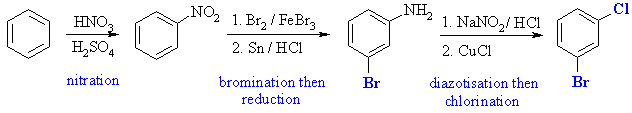

| (d)   |


    Since both -Cl and -Br are ortho- / para- directing, we cannot

    just introduce them using the halogen and iron (III) trihalide method.

    The alternative is via the diazonium reactions and a Sandmeyer reaction.

    This also means we can use the nitro- group to set up the required meta

    arrangement.

 |

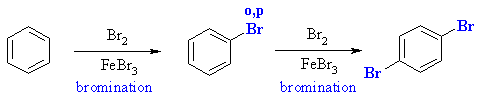

| (e)




   |


    Since bromine is an ortho / para director but the large

    size of the bromine to some degree sterically inhibits ortho substitution,

    1,4-dibromobenzene can be obtained by treating benzene with excess Br2

      and

    the Lewis acid catalyst iron (III) bromide.
   |

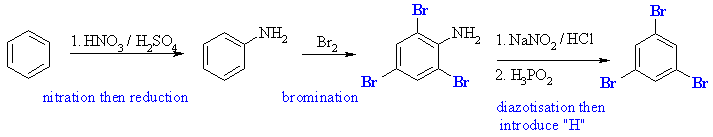

| (f)






   |
 In order to complete this synthesis, we need to use aniline.... this

    powerful activating group allows for the introduction of 3 bromines in

    the correct arrangement (in fact it is so reactive, a catalyst is not even

    needed, and the reaction is almost instantaneous at room temperature),

    then the amino group, -NH2, can be removed by diazotisation

    and the introduction of a H.
 |
|  |  |

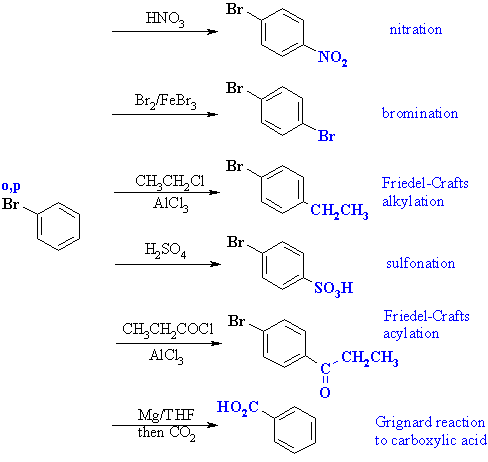

| Qu2:   | Since the bromine is an ortho- / para- director, but

  is fairly large, the major product of these reactions will be the para-

  isomers. |
|  |
   |

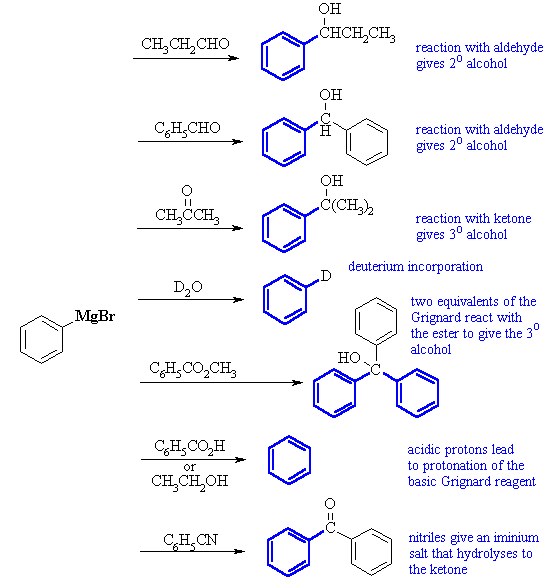

| Qu3: | A collection of reactions of an aryl Grignard reactions.... you should

  compare them with those of ethyl magnesium bromide (see chapter

    14 questions).  In each case remember that there is a aqueous

  acid work-up. |
|  |  |
|  |  |
| Qu4: | Yes benzyne is aromatic..... it has a cyclic, planar, conjugated, 6πelectron system.
 |
|  |  Note that

  the second p bond (shown as the blue orbitals

  in the diagram to the right) of the triple bond is perpendicular and therefore

  cannot overlap with the aromatic π system (shown

  as cyan orbitals). This means that the two electrons associated with this

  bond are not part of the conjugated system. Benzyne is very reactive due to the strain of the triple bond due to

  its incorporation into the six membered ring.

 |
|  |  |

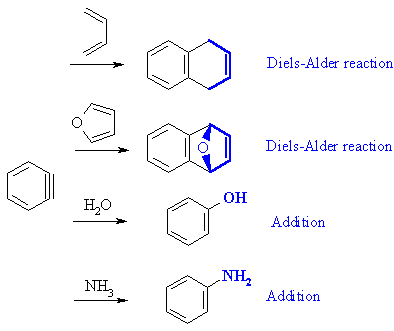

| Qu5: | Benzyne has a reactive triple bond undergoing addition reactions, including
the Diels-Alder reaction: |
|  |  |
|  |  |
