Part 8: STRUCTURE DETERMINATION

Note that these types of questions are often the most difficult on the examination. This is because they are holoistic in that they require a good understanding of the reactions and the concepts and the ability to apply those concepts. They can't be memorised, they require understanding and ability to apply. Hence they help discriminate those who truelly understand from those who have memorised and will soon forget.

A full schematic of the full solution is presented below. This is also presented in several parts, where each diagram has more information added to it.
The idea behind this is to encourage students to see how to work towards the answer by building up the answer from the information in the question gradually.

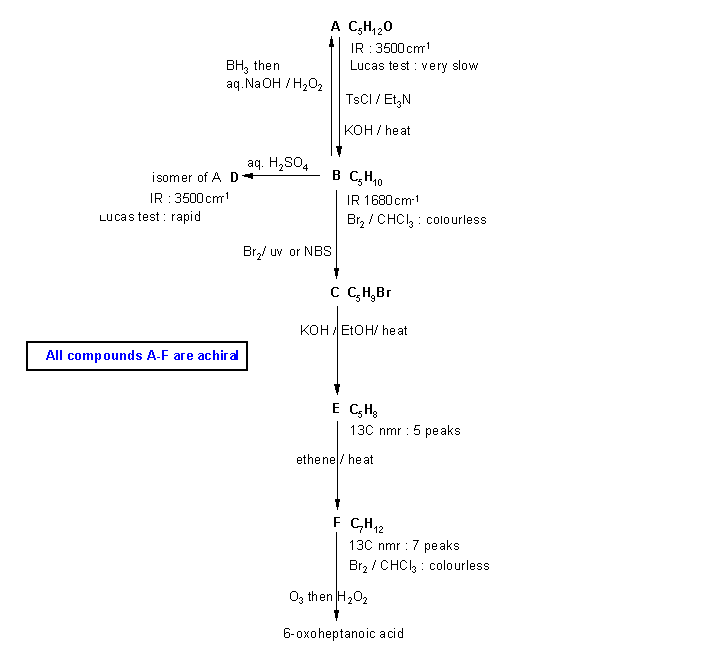

Diagram 1 just gives all the information from the question in black with no interpretation.  You can use this to try to solve the problem based on that information.

The question

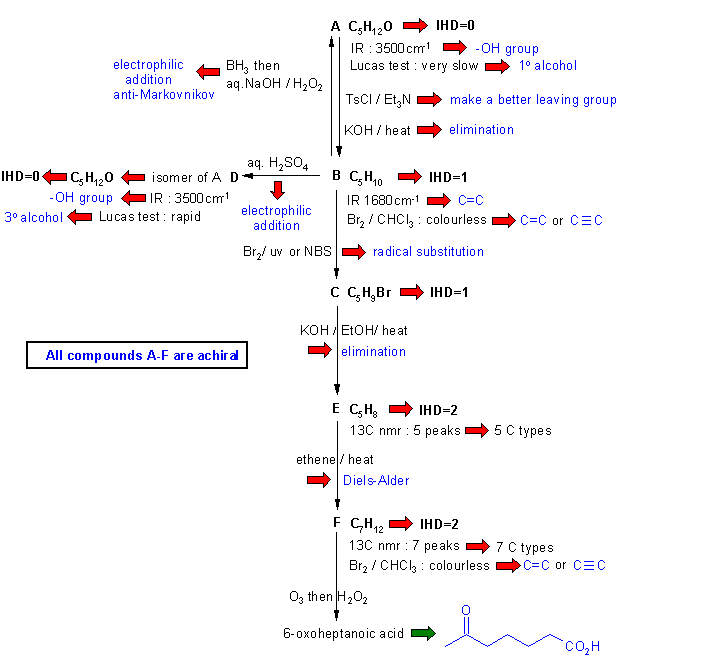

Diagram 2 gives the basic information from the question in black and deductions directly from this information are indicated by red arrows and with blue text.

Qu PLUS

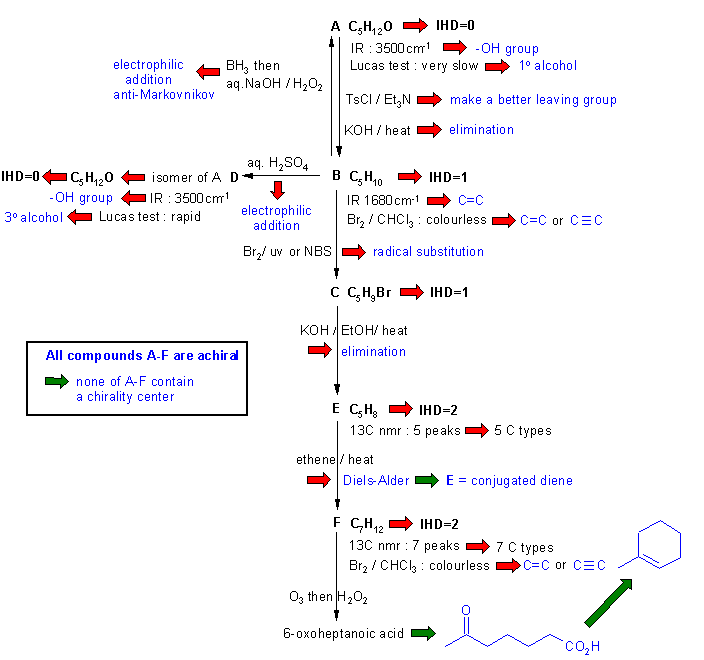

Diagram 3 is diagram 2 plus it identifies points that provide potential key information by green arrows and key initial structures

Plus key hints

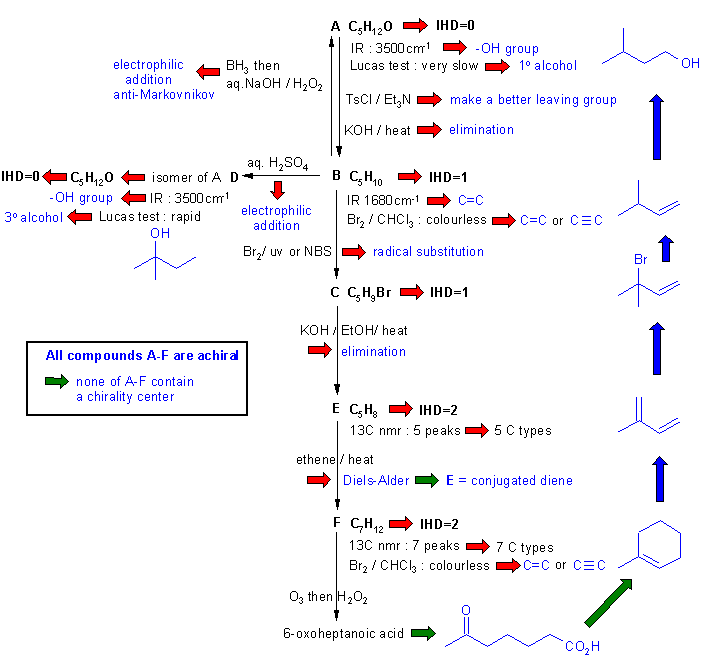

Diagram 4 gives the completed solution with the structures linked via the blue arrows to show the path required to work them all out. There are, of course, other possible thought pathways.

st det MT-W-04

 Note that the structure of F is perhaps the pivotal point. We should be able to deduce that it's a cyclohexene with a methyl group. The key point to realise is that in order for F to be achiral, then the methyl group must be at C1. Hence E must be 2-methyl-1,3-butadiene. Other important points are to realise that A is a primary alcohol, B is a terminal alkene and the D is a tertiary alcohol.

mechanisms to follow
